[8K, 8 in 1] QZ USB-C Hub with HDMI 8K, 8K/30Hz, 4K/144Hz USB-C Dock Laptop Docking Station, Power Delivery 100W Ethernet for USB-C PC Laptop Phones and Office Work Stations [Aluminum]

Price: ₹5,304 - ₹3,995.00
(as of Jan 23, 2025 12:52:29 UTC – Details)

Product Description

QZ USB-C Hub, 8 in 1 USB-C Dock, Power Delivery 100W, HDMI max 8K/30Hz, 4K/144Hz, USB 3.0 5Gbps, USB-C 5Gbps, SD/micro SD (TF) Card Reader, Ethernet

QZ offers the most powerful, efficient, and versatile I/O solution for video, data, power and Ethernet. The HDMI port supports media display at resolutions up to 8K 30Hz, keeping every incredible moment detailed and ultra-vivid.

1 USB Port and 1 USB-C port support data transmission up to 5 Gbps each. A USB 2.0 port supports data transmission up to 480 Mbps. SD3.0/micro SD (TF) 3.0 card readers with max 104 Mbps, support 2 card slots to work simultaneously; Ethernet RJ45 with max 1000 Mbps.

A USB-C port supports Power Delivery max 100W for charging. Though the dock draws power from the host USB, it is recommended to use 100W power charger (charger is not included) for smooth operation. The dock uses 15W power for functioning itself, the rest 85W is passed through to charge the host.

It is designed for DP-Alt Mode featuring USB-C based PC, Laptop and Phones.

Note:

Video capabilities are dependent on the host. Not all USB C devices can video-out. Confirm your device’s USB-C port for DP Alt Mode support. Only DP Alt Mode enabled Type C devices can video-out.

Technical Specifications:

Upstream

USB-C Male (to Host) x1

Downstream

HDMI x1 8K/30Hz

USB-A x1 5 Gbps

USB-C x1 5 Gbps

USB 2.0 x1 480 Mbps

SD/TF x1

RJ45 x1

USB-C PD Charging x1 100W

USB-C Male (to host)

* Support DP1.4 Alt mode

* Support positive and negative connection

* Support max 5Gbps data transmission and max 4K/60Hz video transmission simultaneously

HDMI x1

* Support max 8k/30 Hz or 4K/144 Hz video output

* Support High Dynamic Range(HDR)

* Support multiple color formats: RGB; YCbCr4:4:4; YCbCr4:2:2; YCbCr4:2:0；8/10/12 bpc

* Support HDCP2.2 and HDCP1.4

Note:

Video capabilities are dependent on the host.

Not all USB C devices can video-out. Confirm your device’s USB-C port for DP Alt Mode support.

Only DP Alt Mode enabled Type C devices can video-out.

Max resolution can be achieved with host supporting DP1.4 & DSC

Actual video output resolution depends on the connected host and displays

USB-A x 1

* Max 5Gbps data transmission

* Support max 900mA downstream charging

* Support short-circuit, over-current, over-voltage protection

USB C x 1

* Max 5Gbps data transmission

* Support max 5V/1.5A downstream charging

* Support short-circuit, over-current, over-voltage protection

USB-A 2.0 x 1

* Max 480 Mbps data transmission

* Support max 500mA downstream charging

* Support short-circuit, over-current, over-voltage protection

SD/micro SD (TF)

* SD and Micro SD (TF) supports SD3.0 with max 104MBps

* 2 card slots can work simultaneously

RJ45 x1

* Support 10M/100M/1000M bandwidth

* Support full duplex flow control

* Support Wake-On-LAN

* Light indicator: no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.

USB-C PD Charging x1

* Support max 100W PD charging

* Max 85W PD charging for PC, 15w is dedicated to the functioning of this product

* Support fast role swap of PD3.0, the connected device will not get disconnected while plugging out PD Adapter

Powered by DP 1.4 Technology

QZ offers the most powerful, efficient, and versatile I/O solution for video, data, power and Ethernet.

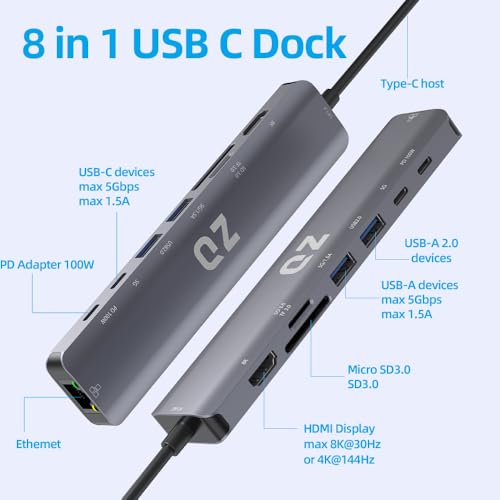

8 in 1 Dock with 8K 30Hz

HDMI x1 8K/30Hz

USB-A x1 5 Gbps

USB-C x1 5 Gbps

USB 2.0 x1 480 Mbps

SD/TF x1

RJ45 x1

USB-C PD Charging x1 100W

HDMI 8K 30Hz

The HDMI port supports media display at resolutions up to 8K 30Hz, keeping every incredible moment detailed and ultra-vivid.

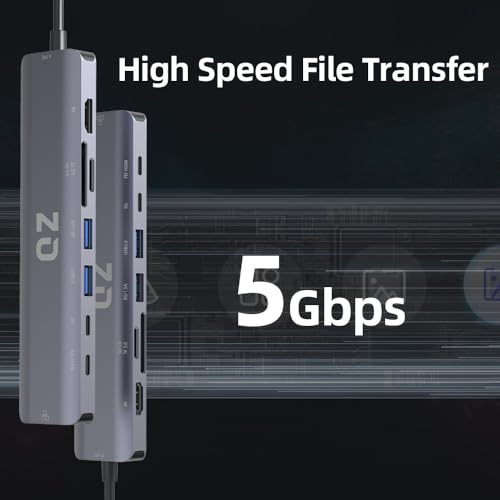

USB-A/USB-C 5Gbps

1 USB Port and 1 USB-C port support data transmission up to 5 Gbps each.

A USB 2.0 port supports data transmission up to 480 Mbps.

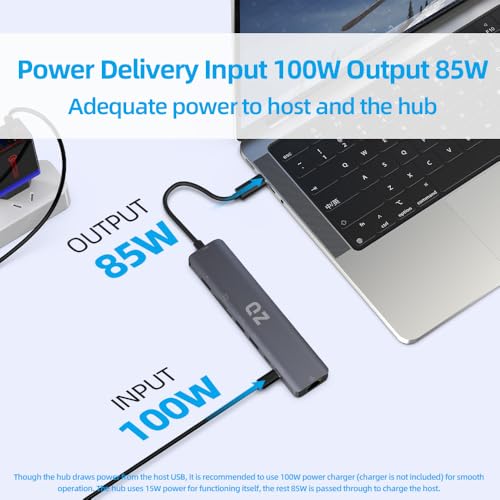

Power Delivery 100W

The USB-C port supports Power Delivery max 100W for charging. Though the dock draws power from the host USB, it is recommended to use 100W power charger (charger is not included) for smooth operation. The dock uses 15W power for functioning itself, the rest 85W is passed through to charge the host.

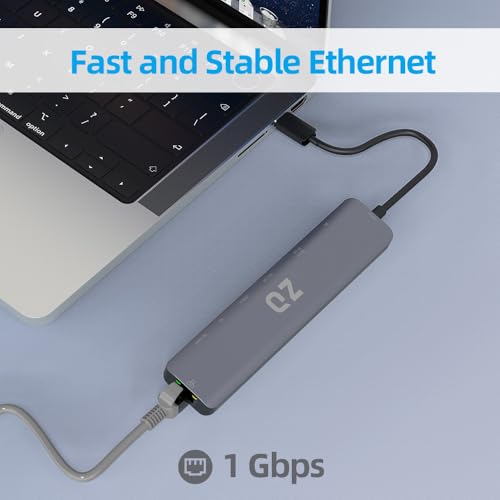

Ethernet 1 Gbps

Ethernet RJ45 with max 1000 Mbps (1 Gbps).

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.3 out of 5 stars

3,674

4.3 out of 5 stars

3,674

4.3 out of 5 stars

3,674

4.3 out of 5 stars

3,674

4.4 out of 5 stars

1,755

4.4 out of 5 stars

1,755

Price

₹16,300.00₹16,300.00 ₹4,495.00₹4,495.00 ₹3,995.00₹3,995.00
— ₹2,039.00₹2,039.00 ₹2,560.00₹2,560.00

HDMI
2 Ports, 4K/60Hz 4K/30Hz 1 Port, 4K/60Hz 1 Port, 8K/30Hz, 4K/144Hz 1 Port, 4K/60Hz 1 Port, 4K/30Hz 1 Port, Single 8K or Dual 4K/60Hz

DisplayPort
2 Ports, 4K/60Hz – – – – 1 Port, Single 8K or Dual 4K/60Hz

USB-C
3 Ports, Data 10 Gbps 2 Ports, Data 5 Gbps 2 Ports, Data 5 Gbps 2 Ports, Data 5 Gbps 1 Ports, Data 5 Gbps –

Power Delivery
30W 100W 100W 100W 100W –

USB-A
3 Ports, 10 Gbps 2 Ports, 5 Gbps 2 Ports, USB 3.0 5 Gbps, USB 2.0 480 Mbps 2 Ports, 5 Gbps 1 Port, 5 Gbps –

SD/micro SD (TF)
SD 4.0, max 312 Mbps, TF 3.0 104 Mbps SD 3.0, TF 3.0, 104 Mbps SD 3.0, TF 3.0, 104 Mbps – – –

Ethernet RJ45
max 1 Gbps max 1 Gbps max 1 Gbps – – –

Audio 3.5mm
16/24 bit, max 96 KHz 16/24 bit, max 96 KHz – – – –

External Power
20V 150W DC, max 96W for host charging – – – – –

Compatible Devices
USB-C Hosts with DP-Alt Mode USB-C Hosts with DP-Alt Mode USB-C Hosts with DP-Alt Mode USB-C Hosts with DP-Alt Mode USB-C Hosts with DP-Alt Mode USB-C Hosts with DP-Alt Mode

【USB 3.0/USB-C/SD/Micro SD/Ethernet】1 USB Port and 1 USB-C port support data transmission up to 5 Gbps each. A USB 2.0 port supports data transmission up to 480 Mbps. SD3.0/micro SD (TF) 3.0 card readers with max 104 Mbps, support 2 card slots to work simultaneously; Ethernet RJ45 with max 1000 Mbps.
【Power Delivery 100W】A USB-C port supports Power Delivery max 100W for charging. Though the dock draws power from the host USB, it is recommended to use 100W power charger (charger is not included) for smooth operation. The dock uses 15W power for functioning itself, the rest 85W is passed through to charge the host.
Compatible with DP-Alt Mode featuring USB-C based PC, Laptop and Phones. Video capabilities are dependent on the host. Not all USB C devices can video-out. Confirm your device’s USB-C port for DP Alt Mode. Only DP Alt Mode enabled Type C devices can video-out.
